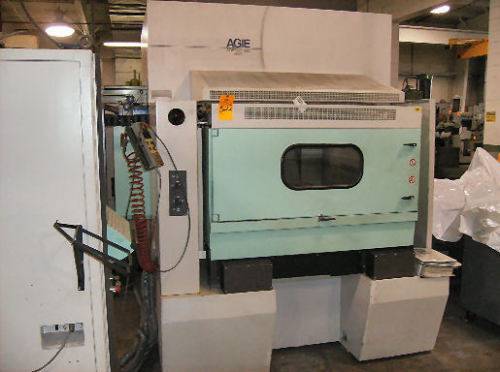

| CNC Wire EDM | | X-axis travel | 25.875" | | Y-axis travel | 15.74" | | Z-axis travel | 14.88" | | U-axis travel | 1.18" | | V-axis travel | 1.18" | | Max workpiece capacity (X/Y/Z) | 33.85”/22.83”/9.84” | | Resolution (X/Y) | 0.0000019” | | Resolution (U/V) | 0.000039” | | Resolution (Z) | 0.000019” | | Machine Weight | 7,270 lbs | | Wire Range Φ | 0.001 to 0.013 | | Table Load | 5 axis | |
|
Manufacturer: AGIE
Model: 350 HSS.SF+F
Equipped with: Agieconic Pivot Head which orients both guides and the flush housing to march the commanded taper angle |
|

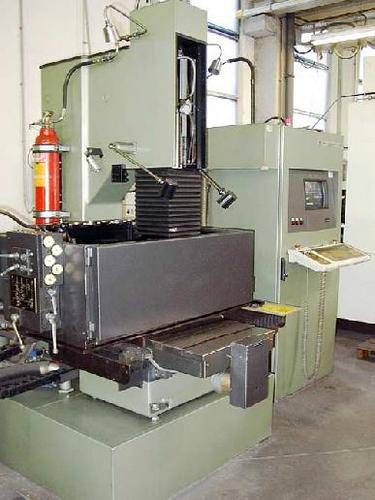

| CNC Sink EDM | | X-axis travel | 16" | | Y-axis travel | 11.250" | | Z-axis travel | 9" | | C-axis travel | 180° rotating | | Weight capacity | 1500 lbs | |
|
AEG Elotherm Elbomat M1 Sink CNC EDM equiped with:
- 16 carousel tooth changer
- Hirschmann head and accesories
- Elogan 2 super finishing |
|
|
|
